Metal F-style cans are consist of a body, a top cover, a bottom, a handle, and a cap.
In addition to the most important body, the top cover is another important component. It is made of the same material as the body. It is welded to the body by crimping.
The handle is a unique feature and function of the F-style can, which makes it easy to carry. It is usually made of plastic or metal and attached to the top of the body. The handle is designed to be comfortable to hold and able to bear the weight of a full can.
The neck of the can is different. Different caps have different punched holes or necks. This neck is used to connect the body and the cap. This part of the can is designed to facilitate controlled pouring, which is especially important for liquids such as motor oil or paint thinner.Finally, there is the cap, which is available in metal and plastic and is designed to fit tightly around the neck of the can. It is customized according to customer needs and has a variety of options.
Specification
|
Product name |
|||
|
Material |
First-grade tinplate |
||
|
Capacity |
5 liters |
Length (mm) |
180 |
|
Shape |
Rectangular |
Width (mm) |
105 |
|
Thickness (mm) |
0.28mm or customized |
Height (mm) |
270 |
|
Accessories |
Metal handle and cap |
||
|
Outside |
White / Silver / Plain |
Inside |
No coating: Oil based products |
|
CMYK Printing |
With coating: Water based products |
||
|
Packaging design |
Cartons or Shrink wrap and straps, packed on the pallets |
||
|
Production Delivery |
About 25 days after receiving the deposit |
Loading Port |
Shanghai / Ningbo, China |

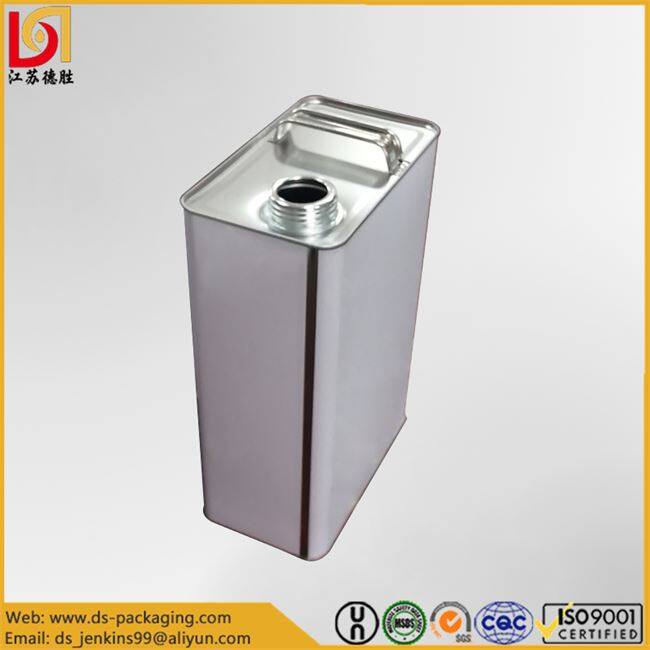

This kind of 5L square tin can now comes with the most exclusive screw cap with locking rings. We used a special welding process. These cans are suitable for loading chemicals such as oil samples of relatively high value.
Production Process
1. Prepare raw materials 2. Tin plate incoming quality checking
3. Making a new printing plate 4. Customized printing
5. Printing quality checking 6. Cutting printed tinplate
7. Curling the can body 8. Welding straight seam
9. Shaping into square 10. Top cover & bottom forming
11. Top cover, body and bottom assembled 12. Tightness test
13. Packing 14. Warehouse
15. Shipping
